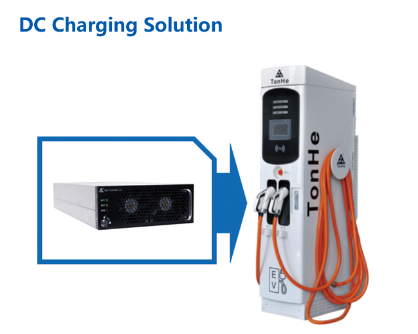

30KW/750V DC EV Charger Module TH750Q50ND-AX
TH750Q50ND-AXProductFeatures：Highchargingefficiency: above1/3load,power≥95%；Lowstandbypowerconsumption:vehiclestandbypowerconsumption＜10W；Highpowerdensity:56.2W/in ;Quickplugandpulltype,easyandsafeformaintenance.
关键词：
产品分类：
产品描述
TH750Q50ND-AX
Product Features：
High charging efficiency: above 1/3 load, power ≥95%；
Low standby power consumption: vehicle standby power consumption ＜10W；
High power density: 56.2W/in ;
Quick plug and pull type, easy and safe for maintenance.
CE CERTICIFICATION
| 30kw/750v Model | TH750Q50ND-AX | |
| Input feature | Input voltage range: | 266~494V AC |
| Input frequency: | 45HZ~55HZ | |
| Power factor: | ≥0.99 | |
| THD: | ≤5% | |
| Standby power consumption: | ＜10W | |
| Output feature | Output voltage range: | 200~750V DC |
| Max output current: | 50A | |
| Constant function: | 600~750V DC | |
| Current range: | 2~50A | |
| Current sharing imbalance for modules in parallel: |
≤±5% ( parallel average current should be more than 5A) | |
| Voltage stabilization accuracy: | ≤±0.5% | |
| Current stabilization accuracy: | ≤±1%(load current is in the range of 20%~100%) | |
| Efficiency: | ≥95.5% | |
| Soft start time: | 3~8 | |
| Communication Protocol: | CAN | |
| Environmental | Working temperature(50℃ output derating): | -20~+70℃ |
| Storage temperature: | -40~75 ℃ | |
| Humidity: | 5%RH~95%RH no condensation | |
| Cooling: | Fan cooling | |
| Altitude: | 2000m | |
| Others | Dimension (L*H*W): | 468mm*85mm*220mm |
| Weight: | ≤13kg | |
| MTBF: | 500, 000 h | |
| IP level: | IP20 | |
